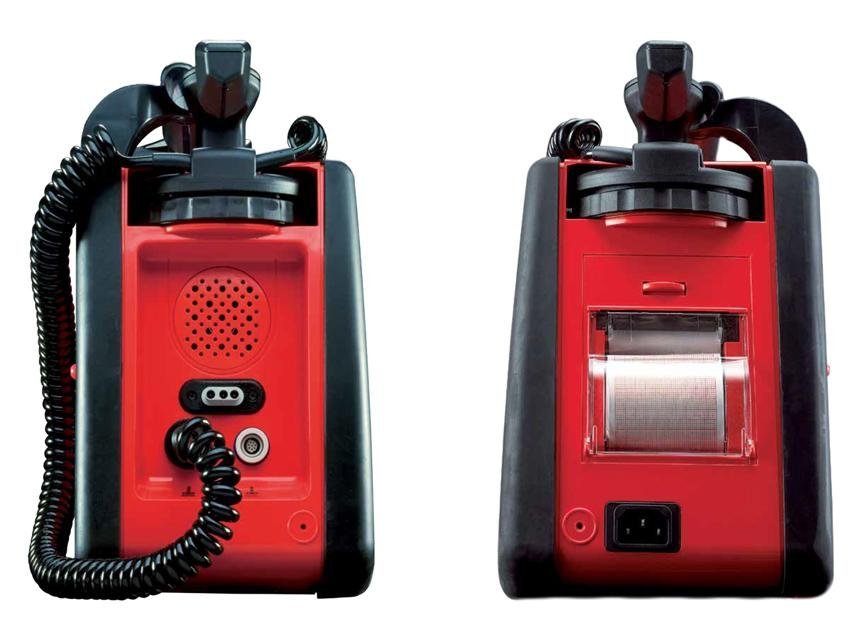

DefiMonitor XD DEFIBRILLATOR manual + AED
Description
DefiMonitor XD manual + AED
The sophisticated high performance instrument with multifunctional features.
It combines a compact product design, proved and tested in practice with the highest possible degree of safety and user friendly handling.
Range of 8 manual or manual + AED defibrillators with or without SpO2 and external pacer.
Supplied with adult/pediatric paddles, disposable adult Save Pads, connect cable, ECG cable, power cable, 1 tube gel, 1 paper roll.
Standard software: GB, FR, DE, IT, ES, KT, PT, RO, TR, CN.
Manual: GB, IT (on request DE, ES, PT, RU, UA).
Other softwares available on request: CZ, FI, HU, NL, NO, PL, RU, SE, DK, GR, LT, JU, AE, BR, CN, IR, JP, TH, US.
Size: 33x29x16 cm
Weight: 5.3 kg
Made in Germany.
Additional information
| Weight | 9,2 kg |
|---|---|
| Dimensions | 60 × 28 × 40 cm |
| Technical Specification | 100J, 10J, 200J, 20J, 3 years shelf life Cable length 3.5 m Save pads connect Data backup Removable memory 2 GB Data/Voice recording up to 35 h Power supply Voltage 90-264 V, 300J, 30J, 360J Charging time: < 6 sec at 200 J Cardio version: manual activation, 50 mm/s TFT LCD blue-mode monitor 115×86 mm (diagonal 5.7"/144 mm) 320×240 pixels Electrodes Adhesive electrodes, 50J, aVF, aVL Patient's resistance: 23-200 Ohm Heart rate: 30-300 per min VF: recogniton VF recogniton Analysis time 7-12 sec VF threshold 200 µV Asystole threshold < 200 µV Artefact, aVR, current controlled impulse Energy (automatic mode) 140-360 J Manual energy stages: 5J, Defibrillation Wave: biphasic, II, III Goldberger, Pacemaker detection Thermal printer Resolution: 200 dpi Advance: 25 mm/s, QRS marker ECG Derivation: Eindhoven I |
