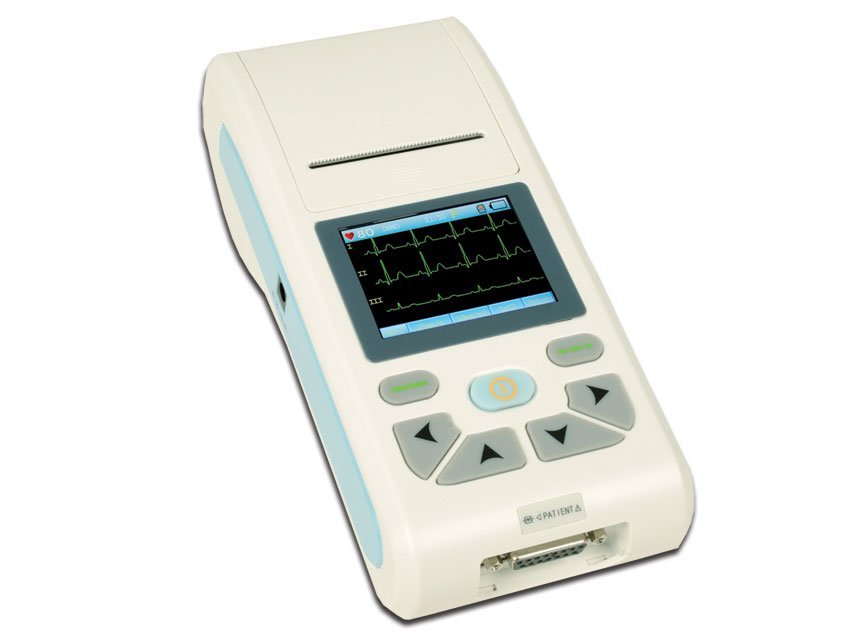

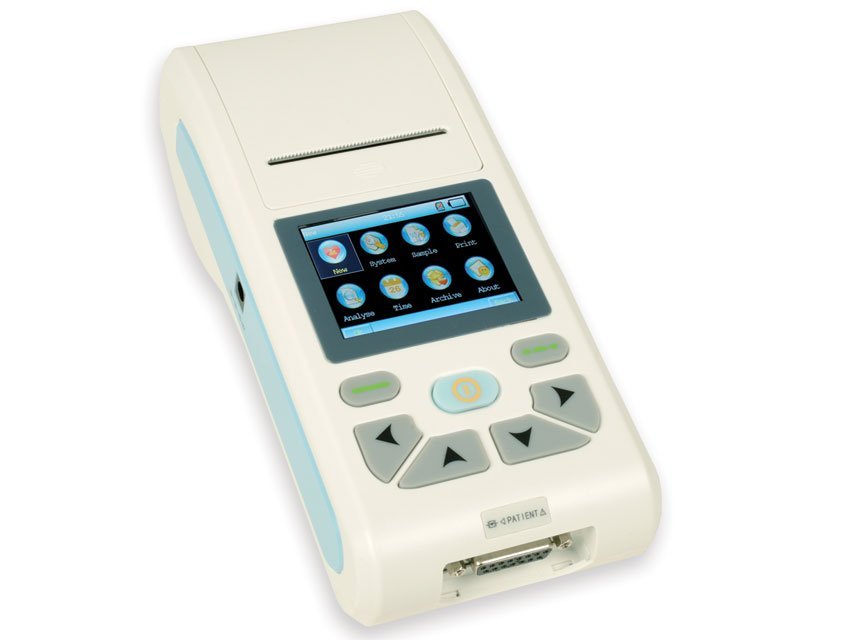

CARDIOPOCKET ECG 3 channel with software
Description
CARDIOPOCKET ECG 3 CHANNELS – with software
12-lead ECG printing ECG waveform with thermal printing system, measuring and diagnosing ECG waveform parameters automatically.
– full-automatic analysis function: auto-analysis and auto diagnosis for routine ECG parameters. It provides measurement results and auto diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+ S(V1)
– 2.83“ colour LCD screen (resolution 320×240) that operates both with touch screen and keys
– high resolution thermal array output system 8 dots/mm (vertical)
– built-in rechargeable lithium detachable battery can continuously work for 4 hours, print up to 90 minutes and 150 ECG
– store up to 100 cases in a SD card
– high-accurate digital filter eliminates baseline drift and distorsion to ECG waveform
– ECG-Sync software to form a ECG workstation
Size: 207 x 96 x 62 mm
Net weight: 500 g
Additional information
| Weight | 2,5 kg |
|---|---|
| Dimensions | 28 × 24,5 × 22 cm |
| Technical Specification | – Power: AC: 100-240 V, > 100 dB (add filter) – EMG filter: 25/35 Hz Time constant: =3.2 s – Frequency response: 0.05-150 Hz (-3 dB – 0.4 dB) – Patient leakage current: <10 µA – Recording paper: 50 mm x 20 m, 000 mAh – Noise level: =15 µVp-p CMRR: >60 dB, 12.5, 25, 50 mm/s ±5% – Safety standard: IEC class I, 50/60 Hz – DC 12V rechargeable lithium battery 2, high speed termal paper – Paper speed: 6.25, type CF defibrillation-proof applied part – Input mode: floating and defibrillation protection – Input circuit current: =0.1 µA Input impedance: =50 M O |
